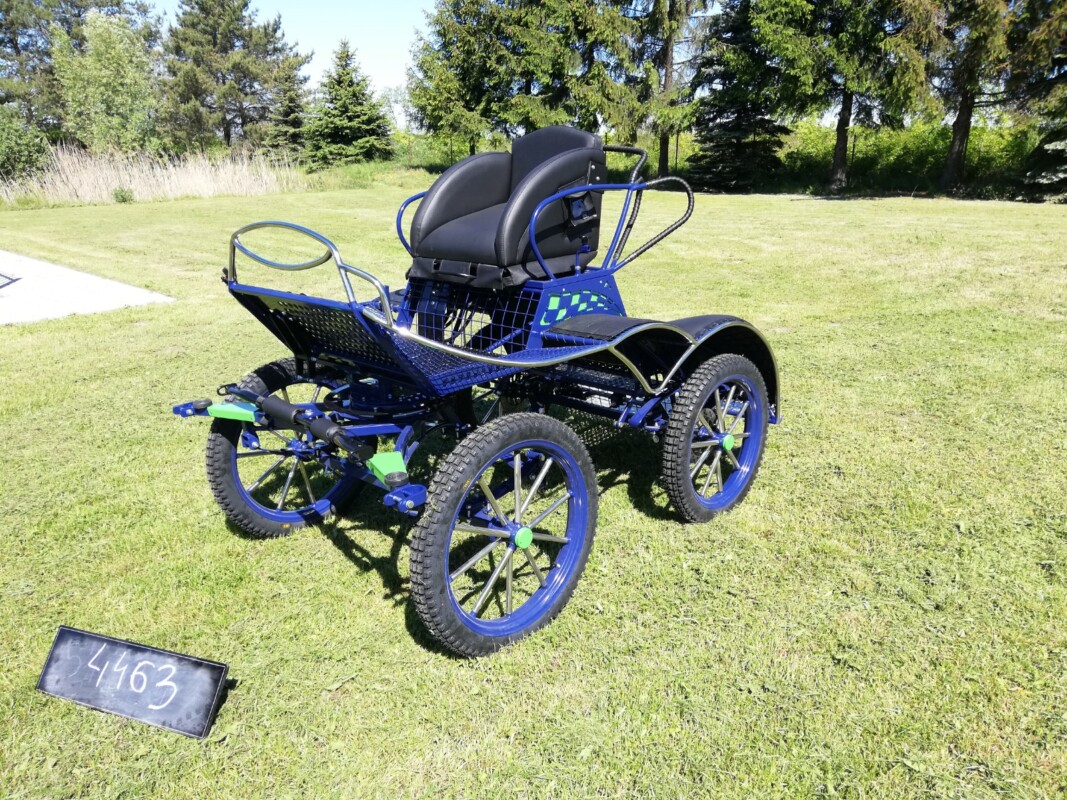

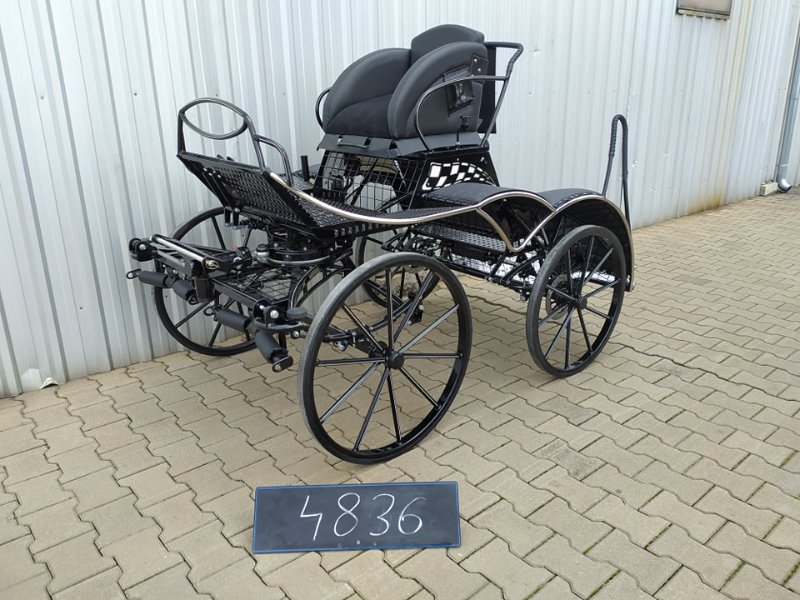

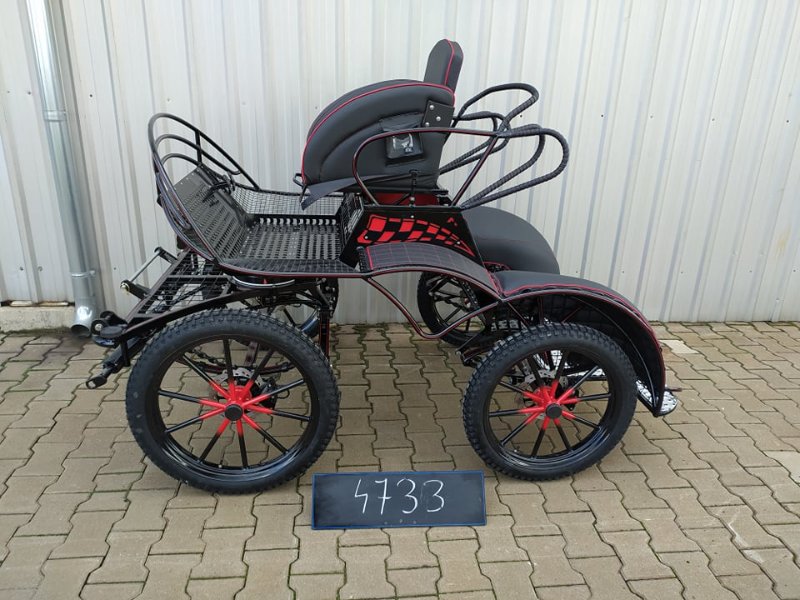

Fox 5 Pair Marathon Competition Carriage Suits 12-14.2hh Pair. £5580

The Fox 5 Pair carriage is a nice light pairs carriage for ponies up to 14.2hh. It can be fitted with the Kutzmann Anti Roll mechanism for more secure cornering. There are a large number of options and accessories available including extendable rear axle for 3 phase competitions. Added extras add weight. The basic carriage weighs about 210Kg. It comes with shafts for driving a single too. £5580+VAT

Standard Details;

  • 125cm width
  • Pneumatic Tyres (Hard available)
  • Straight or Curved spokes
  • Rear Axle Brakes with Stainless Discs and parking Valve.(Pedal on RHS)
  • Rubber Mounted Pole
  • Independant Shafts with Marathon Eye Tips (T1 or T1m for smaller ponies)
  • Single Wedge front seat.
  • Elliptical Springs
  • Choice of colours
  • Lamp Holder Brackets
  • Whip Holder

Additional Options

  • Hard Rubber Tyres £72
  • Spokes “G”, “C”, “E” or “D” £75  or “V” or “V45” £160
  • Spokes in Stainless £234
  • Stainless Shaft Tips £145
  • Front Axle Brakes £266
  • Different place for brake pedal £140
  • Equaliser for swingles Painted £50 Stainless £130
  • Pole mounted on shock absorber £50
  • Turntable Brake with pedal in front or handle for groom £125. Both £275. Handle or crank in rear with guage £200
  • Delayed Steering, sliding tube with bearings OP3 £174
  • Front Seat Wedge moving to centre £70, Wedge with spring underneath £122, Both £530
  • Air Suspension all round £84

Accessories;



  • Increasing frame £120
  • Anti Roll rear axle £236
  • Raise for wedge seat £120
  • Stainless front (dash)  £443
  • Stainless side pipe £236
  • Stainless groom’s handles £236
  • Stainless bumpers £60
  • Stainless Steel seat frame for single wedge £360
  • Op11b Wheels Stainless steel  £2660
  • Carriage cover £210
  • Extending rear axle £740
  • Dickey Seat £236
  • Custom shape of front dash £127
  • Special color of upholstery £236
  • Strap on groom handles £100
  • Suede seat surface on wedge £120
  • Decorative stitching on upholstery £55
  • Decorative trimming (piping) on upholstery £55
  • Number Holder £45
  • Waterproof cover for docs £50
  • Long cup for front wheels £60
  • Long cup for front stainless steel £120
  • Metallic or pearl paint £887
  • Groom handles on seat frame £500
