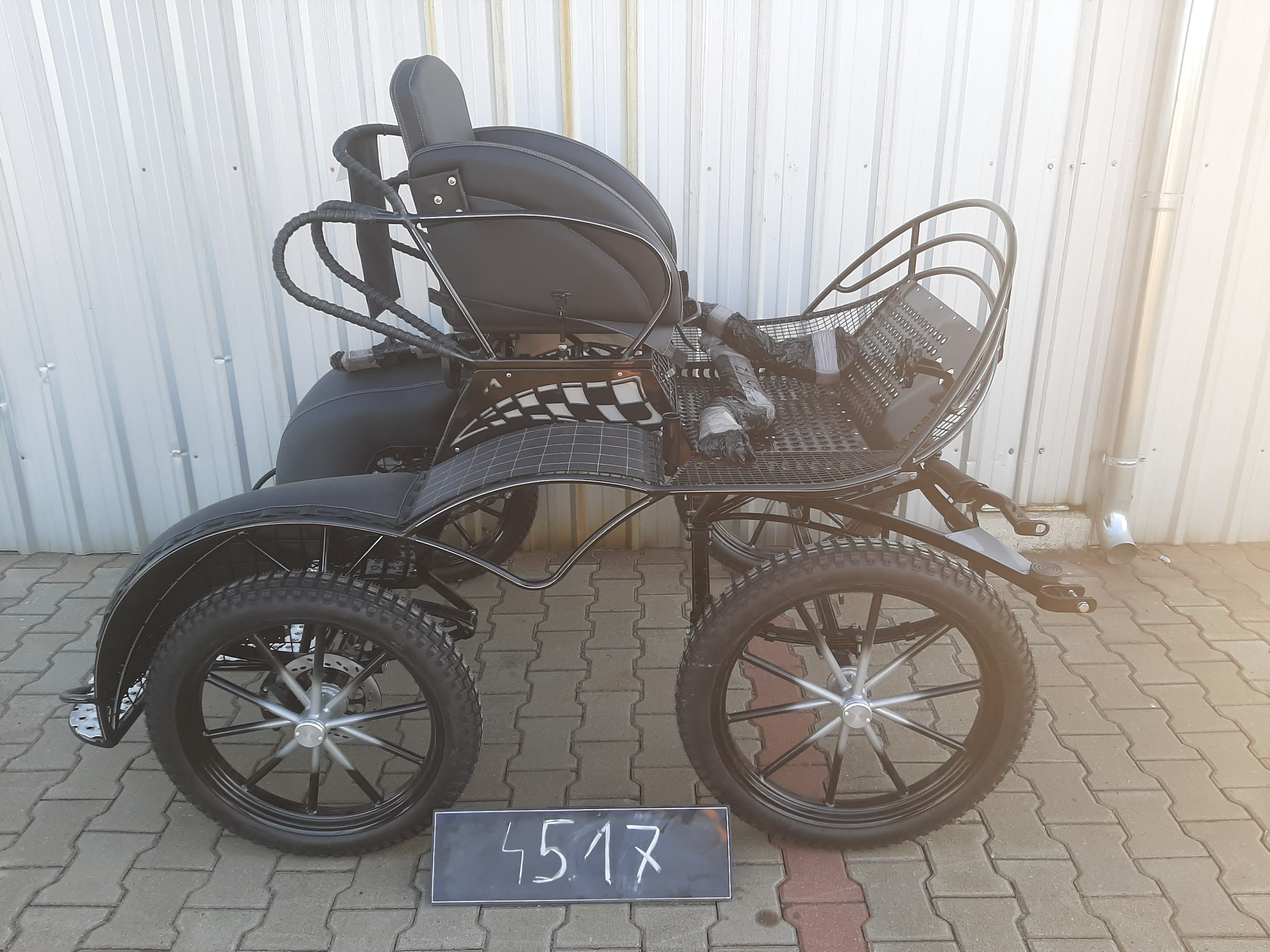

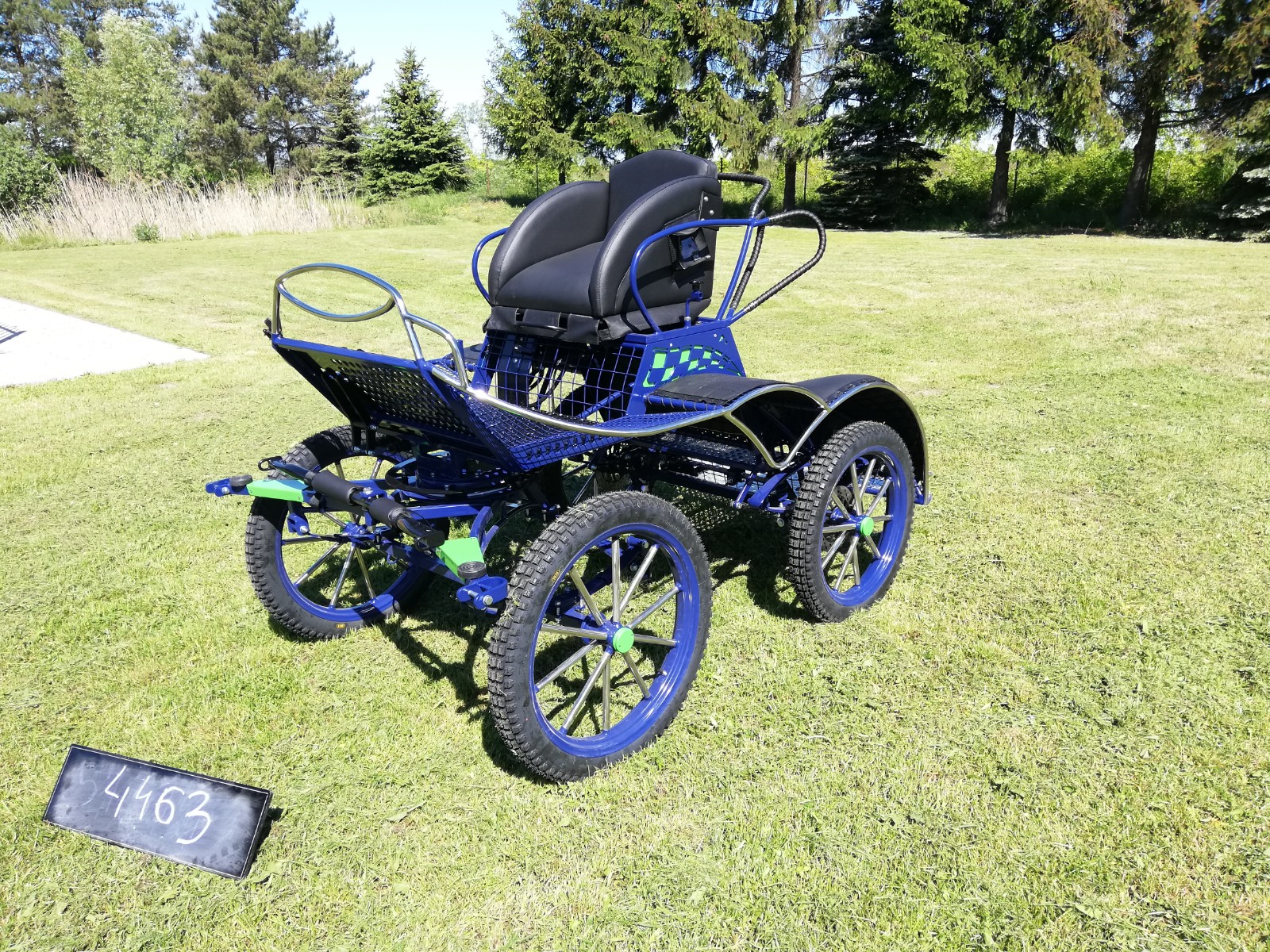

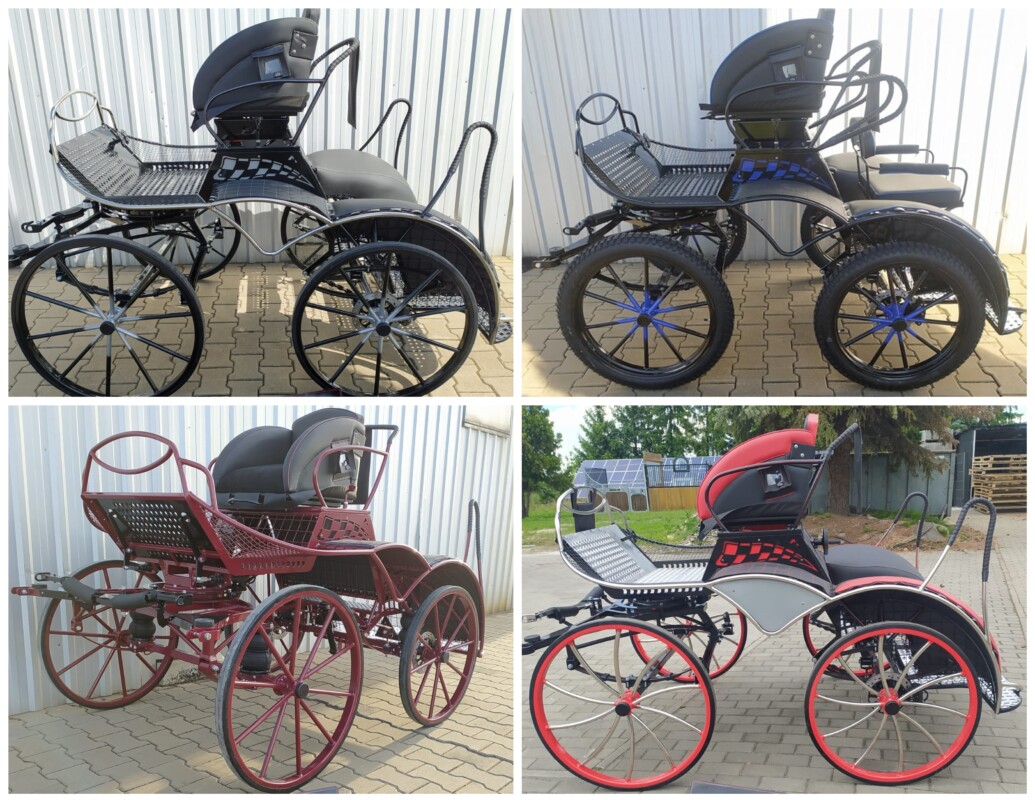

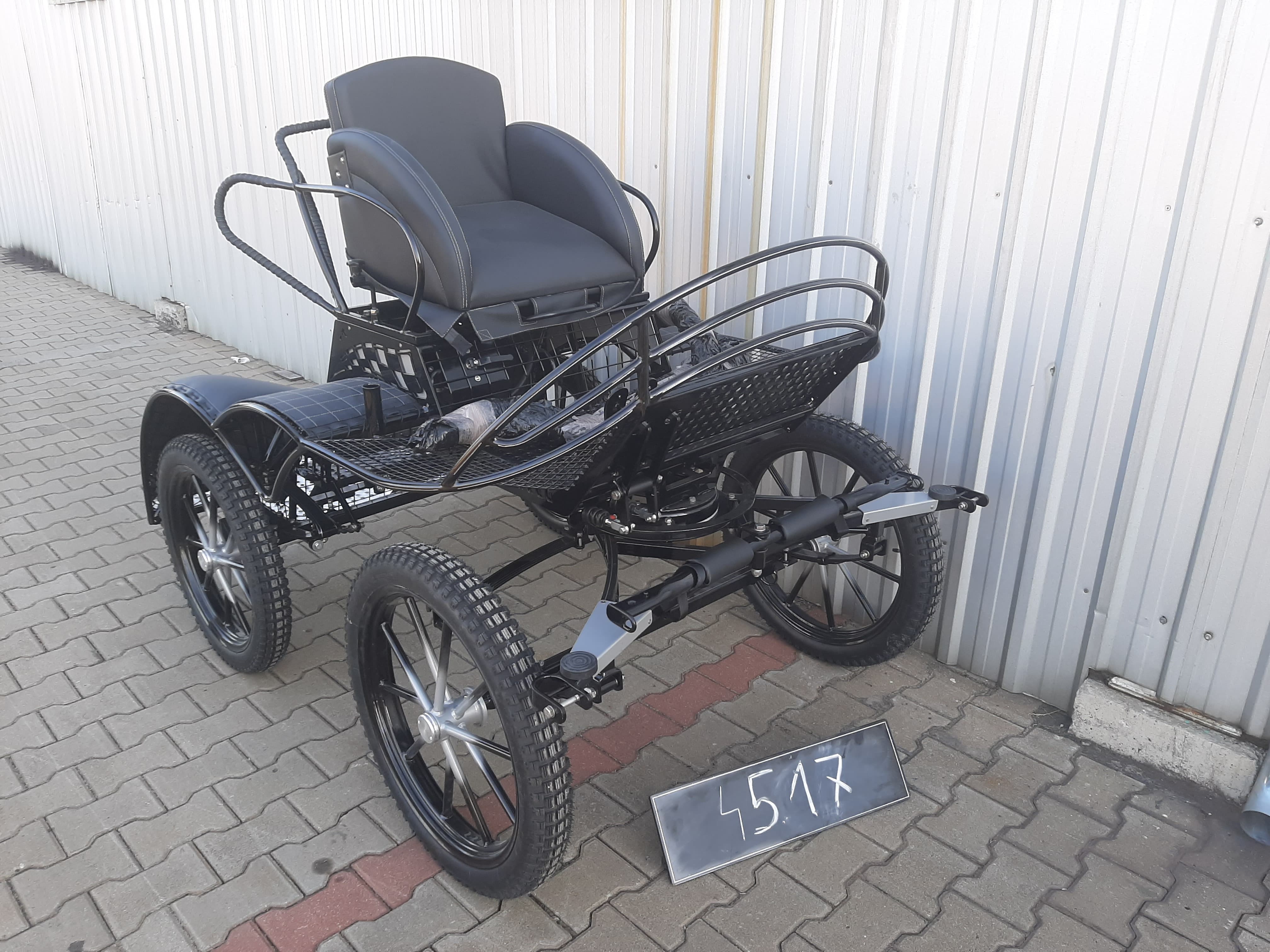

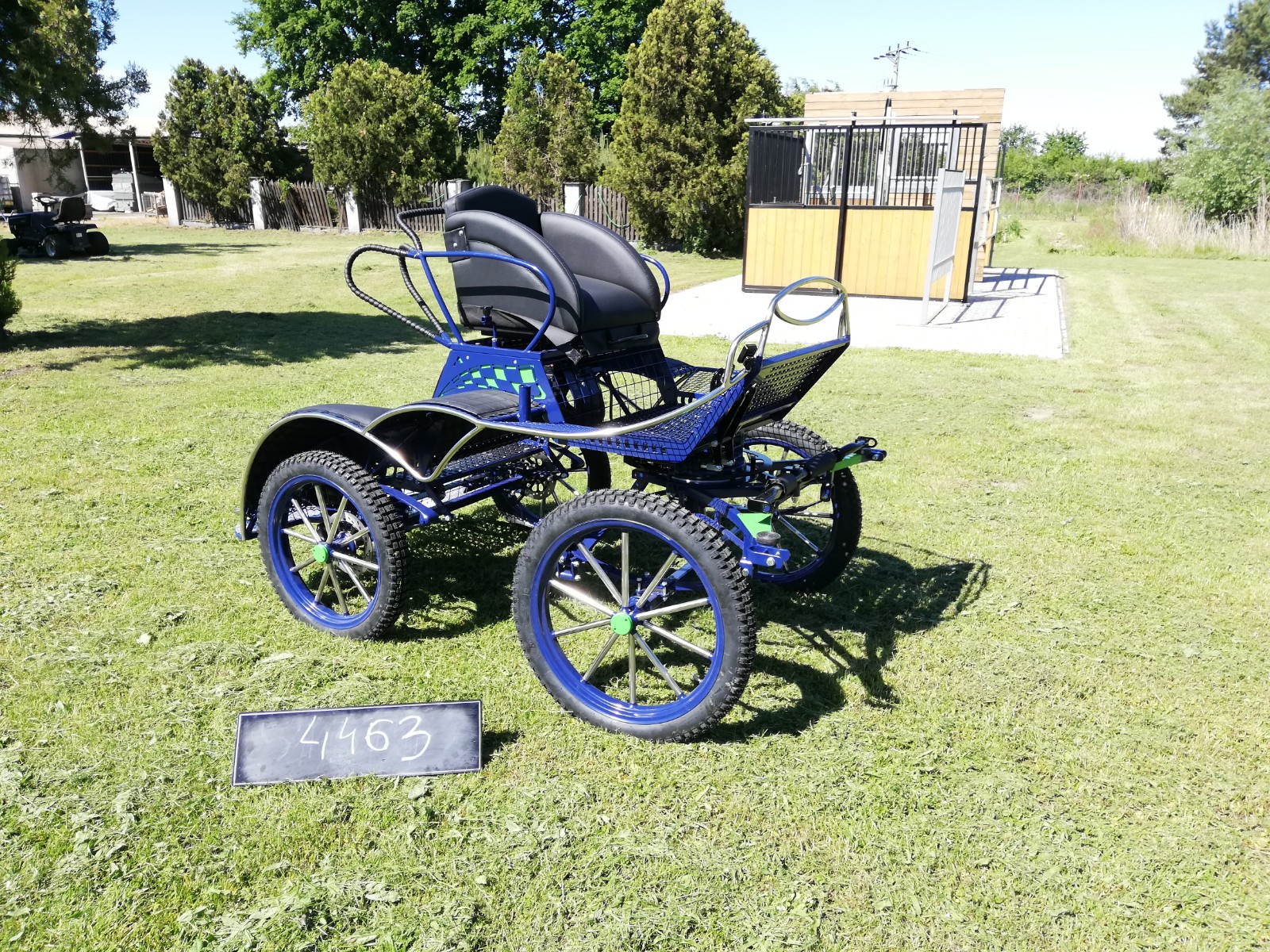

Fox 5 Single (F5) Marathon competition carriage/ pleasure driving. Suits 12.2 to 15hh. £5306

The Fox 5 single is a new lightweight singles carriage for 12.2hh to 15hh dependant upon the sizes of wheels fitted. Basic weight is about 185Kg. Many options and choices available including extendable axle for 3 phase competitions. Basic price is £5306

Standard Details;

  • 125cm width
  • Pneumatic Tyres (Hard available)
  • Straight or Curved spokes
  • Rear Axle Brakes with Stainless Discs and parking Valve.(Pedal on RHS)
  • Independant Shafts with Marathon Eye Tips (T1 or T1m for smaller ponies)
  • Single Wedge or Wedge and flat front seat.
  • Elliptical Springs
  • Choice of colours
  • Lamp Holder Brackets
  • Whip Holder

Additional Options

  • Hard Rubber Tyres £72
  • Spokes “G”, “C”, “E” or “D” £75  or “V”
  • Spokes in Stainless £210
  • Front Axle Brakes £266
  • Different place for brake pedal £147
  • Turntable Brake with pedal in front or handle for groom £125. Both £275. Handle or crank in rear with guage £200
  • Delayed Steering, sliding tube with bearings OP3 £236
  • Front Seat Wedge moving to centre £70, Wedge with spring underneath £122, Both £530
  • Air Suspension all round £84

Accessories;

  • Increasing frame (for tall people) £120
  • Anti Roll rear axle £236
  • Raise for wedge seat £120
  • Stainless front (dash)  £443
  • Stainless side pipe £236
  • Stainless groom’s handles £236
  • Stainless bumpers £60
  • Stainless Steel seat frame for single wedge £360
  • Op11b Wheels Stainless steel  £2660
  • Carriage cover £210
  • Extending rear axle £740
  • Dickey Seat £236
  • Custom shape of front dash £127
  • Special color of upholstery £236
  • Strap on groom handles £100
  • Suede seat surface on wedge £120
  • Decorative stitching on upholstery £55
  • Decorative trimming (piping) on upholstery £55
  • Number Holder £45
  • Waterproof cover for docs £50
  • Long cup for front wheels £60
  • Long cup for front stainless steel £120
  • Metallic or pearl paint £887
  • Groom handles on seat frame £500
