Horse Pairs (HL2) Competition or Pleasure Carriage £5189  Suits 14.2-16.2hh

Horse Light Pair (HL2)  Pairs £5189 Competition or Pleasure Carriage WITH 4 IN HAND EXTRAS AVAILABLE. With the addition of extending rear axle and hard tyres it is suitable for 3 Phase Competitons.

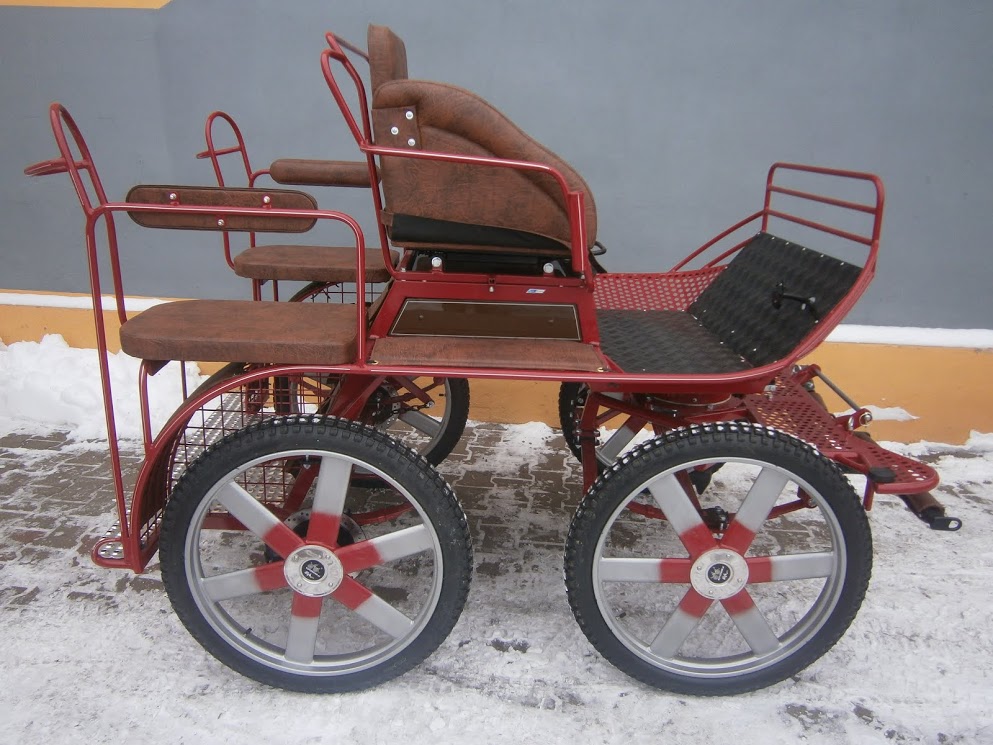

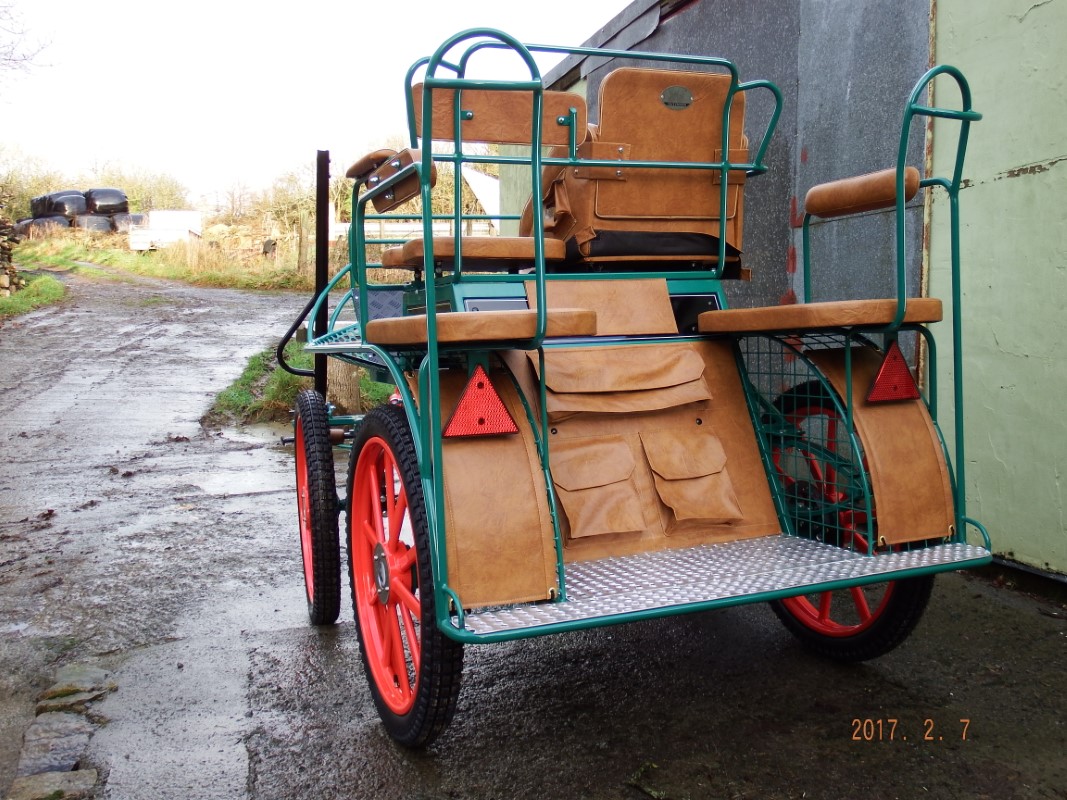

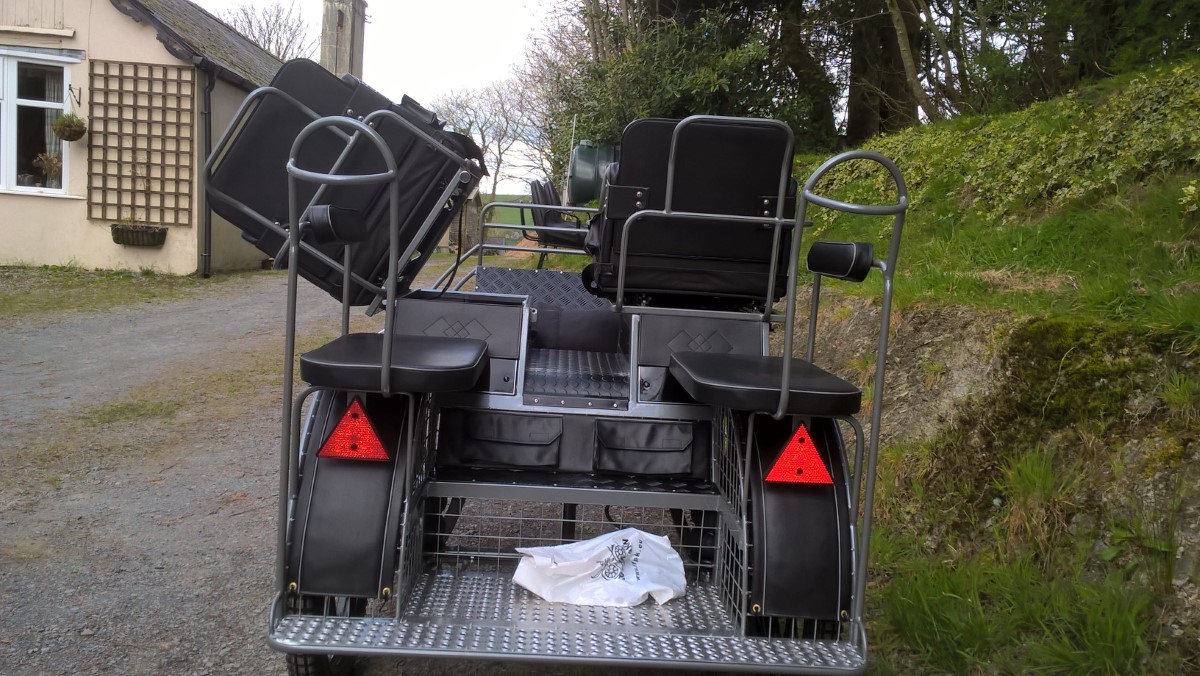

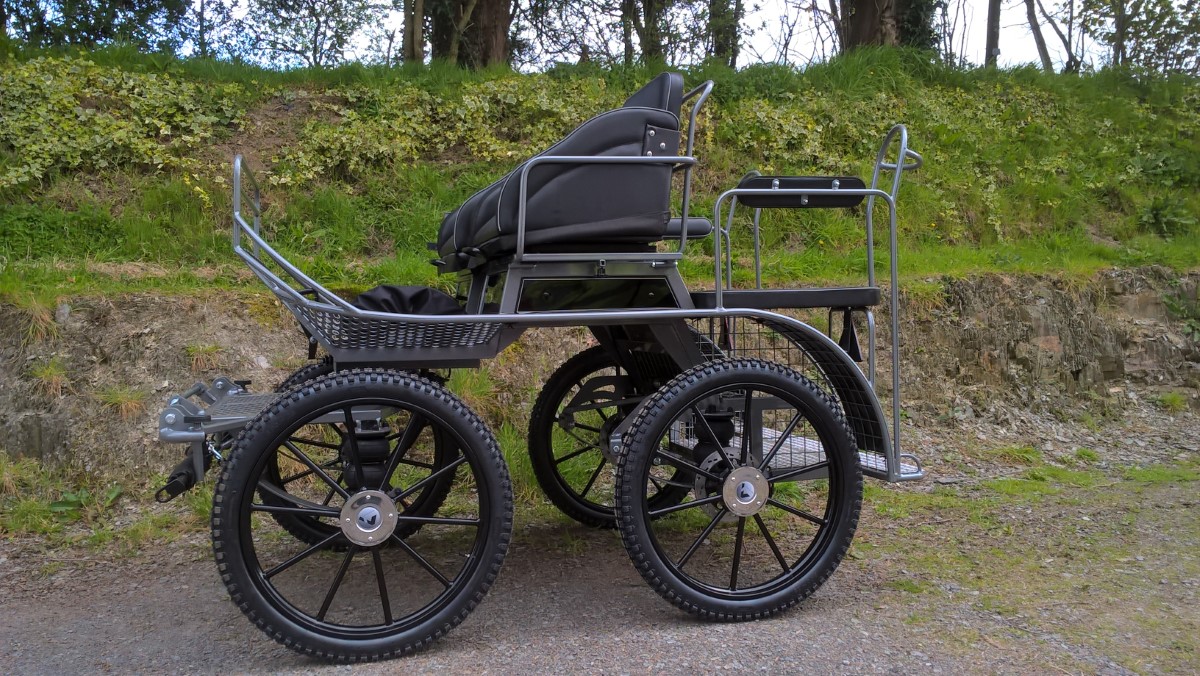

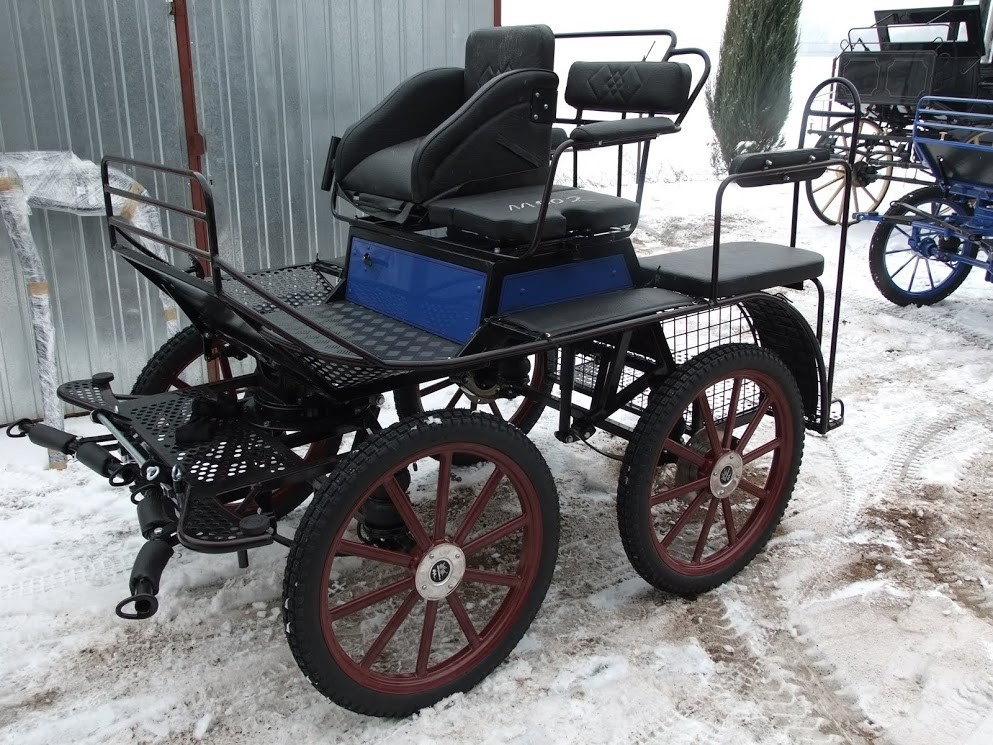

Pair version of popular line of carriages. Light and suitable for all phases as well as for recreation driving. Comes with pole and shafts for a single. These can be “U” shafts or independent shafts. Suits 14.2 to 16.2hh. Weight 245Kg. Here’s an interesting Video; https://youtu.be/xUsj5GucBOw

Standard Details;j5GucBOw

  • Carriage width: 125cm (OR 138cm £232)
  • Wheels: Pneumatic Knobbly  23″ or 25″ (Large size available) straight or curved spokes, Painted.
  • Brakes: Rear wheel, stainless discs and parking brake. pedal on RHS. Hydraulic valve parking brake.
  • Shafts: ‘U’ shafts, or independent with connector and swing T1 marathon eye tips, or T2,T3or T4. Painted. Shaft sizes IS3 or 4

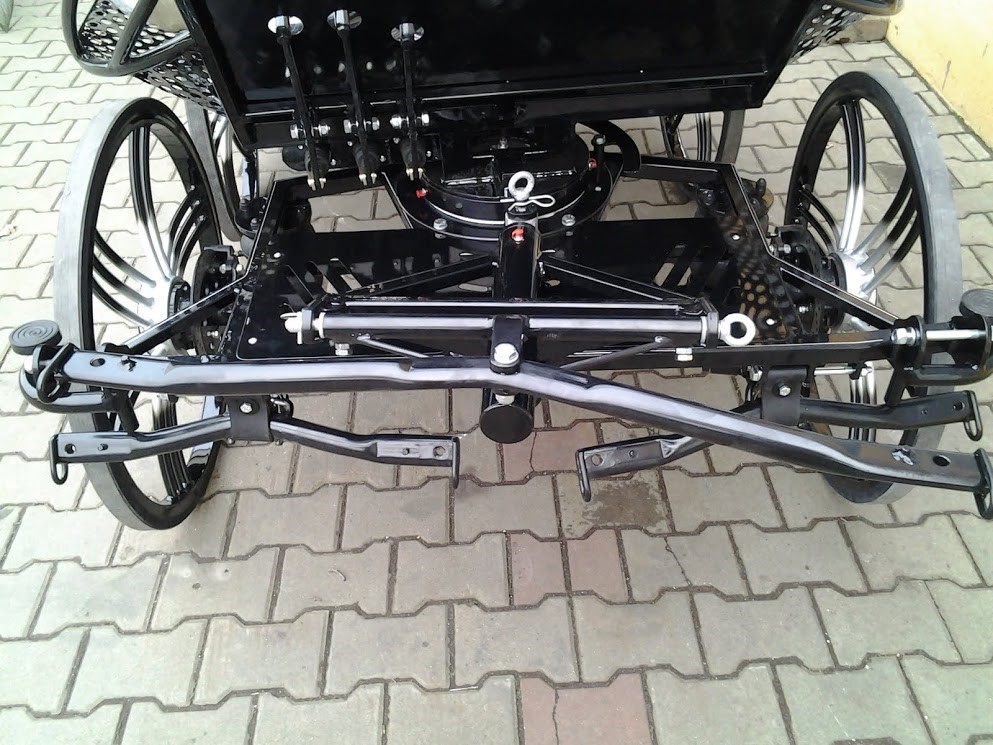

  • Pole. Type op6 with rubber suspension torsion arm, Size D2 or D3 in painted steel.

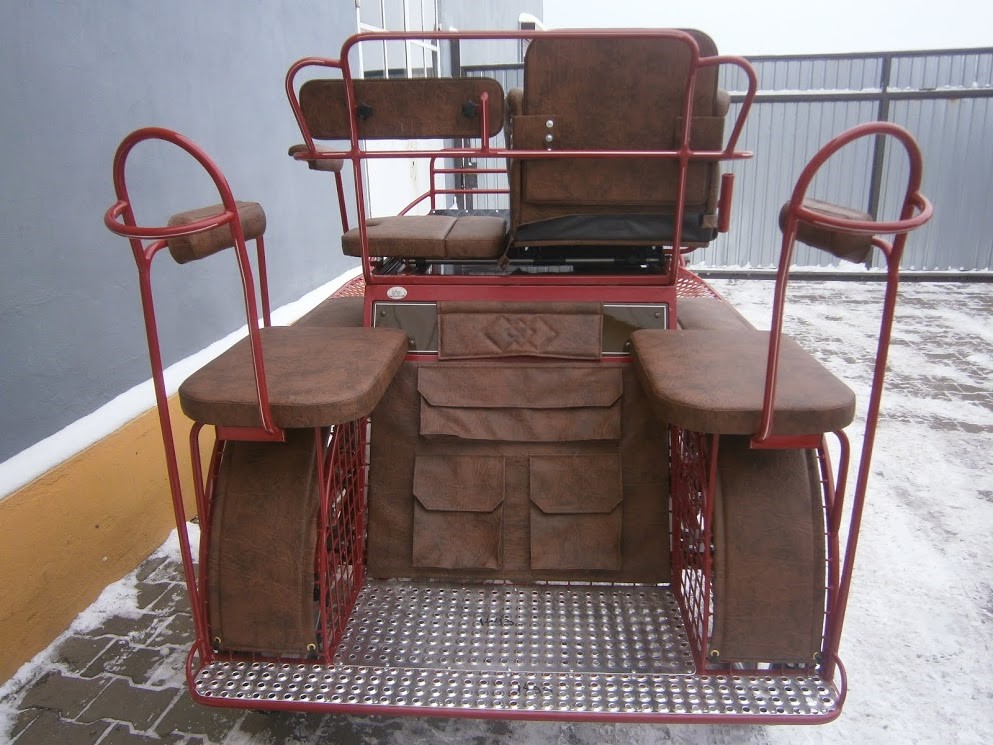

  • Seats   Front PS1 Wedge and flat on side or PS5 Single wedge, or PS2 Flat Bench. Rear, RW Bench with fixed back support.
  • Upholstery: Eco leather gniot.
  • Suspension: SPR1 Three point spring system front and elliptical rear.





Options.

  • Wheels. Hard Rubber or PNNL Pneumatic Naturelink  £60
  • Spare Wheel Set hard rubber. £600
  • Spokes, Double straight, double banana, thin flat, Model E 2//3 or F Flat wide £67
  • Spokes Wooden Profile £135
  • Stainless spokes. £210
  • Brakes: Front axle brakes  £270
  • Parking brake MCB Mechanical crank.  £240
  • Turntable Brake: Pedal in front or handle for groom £126 or Both  £220
  • Turntable Brake Handle or Crank at the back with gauge £200
  • Delayed Steering.  £170
  • Equaliser for swingle painted £50 or stainless  £145
  • Shaft tips: TET telescoping with ertalon tip. £145
  • Tips in stainless  £130
  • Shafts: Stainless. £150
  • Pole  op6 B size D2 or D3 Mounted on shock absorber  painted  £210. With stainless head £90
  • Stainless Pole £290
  • Equipment for 4 in hand. Hanging type painted £130 fixed mounted with additional extension £140.In stainless £160
  • Front seat. PS3 2 Wedges in front.£110. op8 Wedge with spring underneath,£120 op5 Standard wedge moving to centre.£60 op5 op8 Wedge with spring moving to centre  £180
  • Rear seat: Benches with removable backs £70
  • Suspension:AIRSPR1 Air suspension front and rear  £150

Accessories.

  • Stainless front (dash) £443
  • Stainless side pipe  £236
  • Stainless groom’s handles  £236
  • Stainless Bumpers  £60
  • Stainless Steel seat frame for single wedge  £360
  • Carriage cover  £210
  • Extendable rear axle  £740
  • Additional seat for groom dickey seat  £236
  • Wooden Board on dash  £40
  • Stainless Steel Wheels £2660
  • Strap on groom handles  £100
  • Suede seat surface on wedge  £120
  • Decorative stitching on upholstery  £55
  • Decorative trimming (piping) on upholstery  £55
  • Number Holder  £45
  • Waterproof cover for docs  £48
  • Long cup for front wheels  £60
  • Long cup for front stainless steel  £120
  • Metallic or pearl paint  £887
  • Box under front seat  £200
