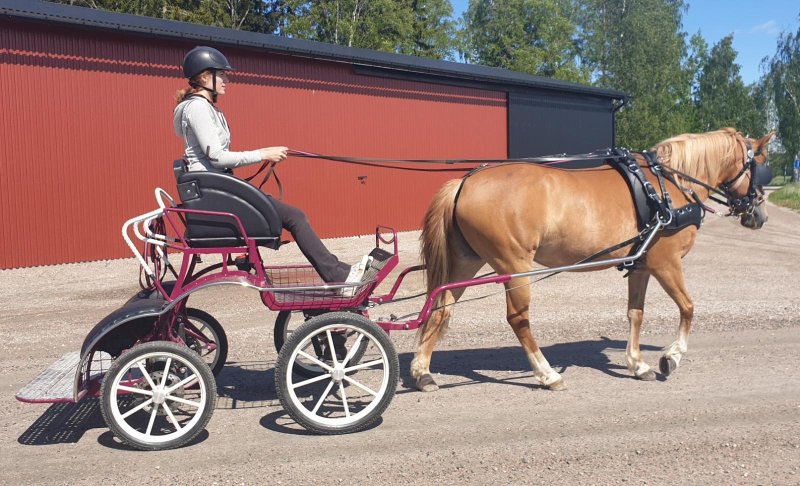

NEW. The MC110 uses the same technology of chassis construction as the Lightweight Squirrel carriage. This is a pair of plates made from a special type of steel, cut on a cold- cut machine by computer. It gives superb strength without the weight of tubular steel. The basic carriage is suitable for 11 to 13hh with standard size wheels. With the larger wheels it is suitable for 13 to 14.1hh. Extendable axle available for 3 phase. Basic Price is £4538. Extendable axle available for 3 Phase

Standard Carriage Details;

125cm Width

Hard Rubber 65cm Front Wheels and 55cm Rear Wheels ( 70cm Front and 60cm rear available )

Pneumatic 19″x3.00″ front, 16″x3.00″ rear (21″x3.00″front available)

Spokes Straight or Curved Coated.

Rear Axle Brakes with Stainless Discs and Parking Valve.

T2 ,T3 or T1m Shaft Tips (see options page)

Single Wedge Seat

Half Elliptical Front and Rear Suspension

OPTIONS;

• Stainless Steel Wheel Spokes
• Stainless front (dash)
• Stainless side pipe
• Stainless groom’s handles
• Dickey Seat
• Delayed Steering
• Extendable rear Axle
• Front Brakes
• Turntable Brake
• Air Suspension
• Carriage cover
• Strap on groom handles
• Decorative stitching on upholstery
• Decorative trimming (piping) on upholstery
• Number Holder
• Extension for back step for marathon
• Waterproof cover for docs
• Metallic or pearl paint
• Soft covers at the back
• Custom shape of front dash
